PSMN4R8-100BSEJ

PSMN4R8-100BSEJ

Part NumberPSMN4R8-100BSEJ

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 100V D2PAK

DatasheetPSMN4R8-100BSE

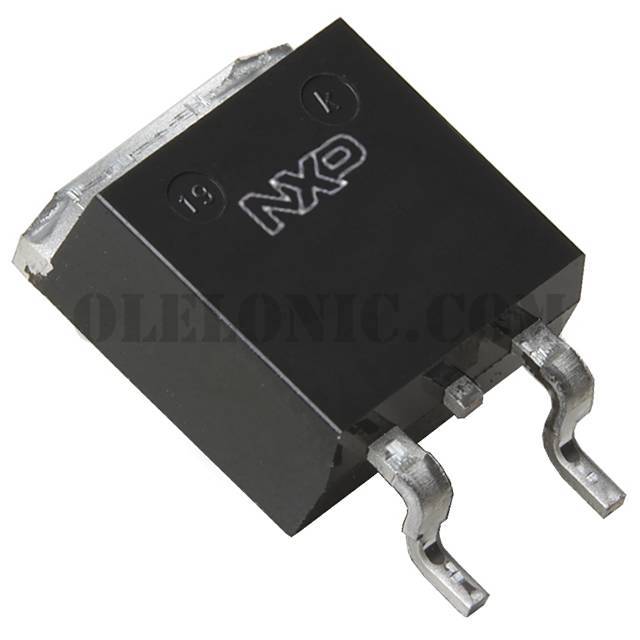

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 120A (Tj) 405W (Tc) Surface Mount D2PAK

To learn about the specification of PSMN4R8-100BSEJ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PSMN4R8-100BSEJ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PSMN4R8-100BSEJ.
We are offering PSMN4R8-100BSEJ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PSMN4R8-100BSEJ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN4R8-100BSE
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	120A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	278nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14400pF @ 50V
FET Feature	-
Power Dissipation (Max)	405W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
