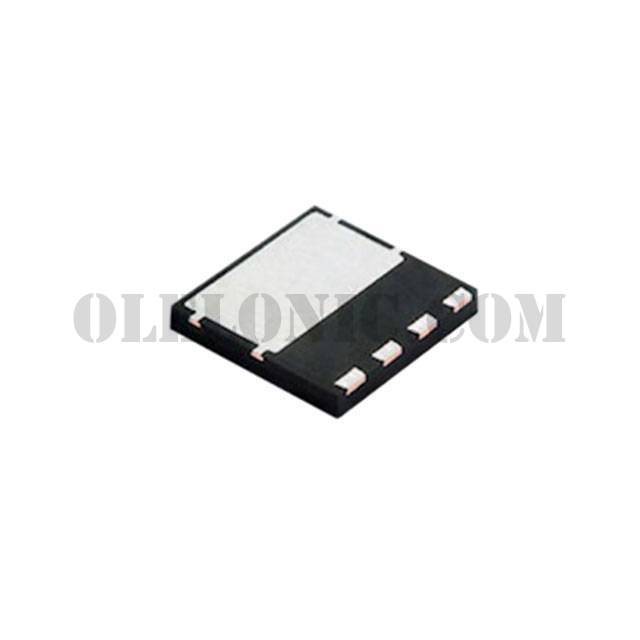

SIHH068N60E-T1-GE3


SIHH068N60E-T1-GE3

Part NumberSIHH068N60E-T1-GE3

Manufacturer

Description

Datasheet

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SIHH068N60E-T1-GE3 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerVishay Siliconix
SeriesE
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600V
Current - Continuous Drain (Id) @ 25°C34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs68mOhm @ 15A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs80nC @ 10V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2650pF @ 100V
FET Feature-
Power Dissipation (Max)202W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 8 x 8
Package / Case8-PowerTDFN
