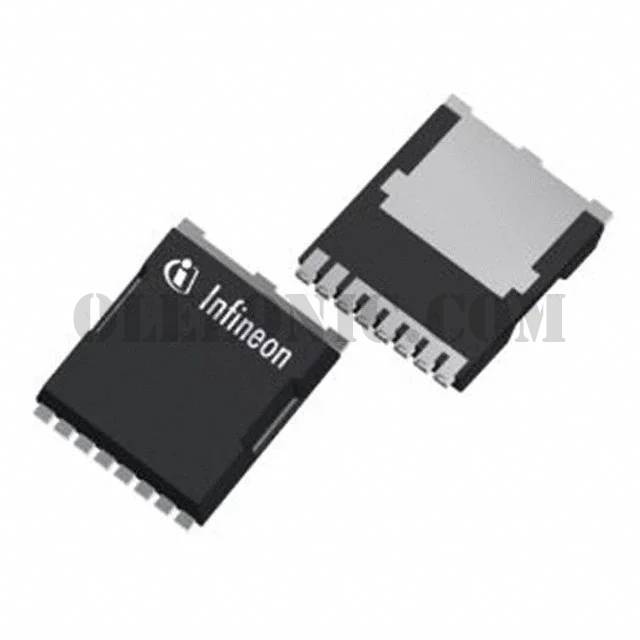

IPT65R105G7XTMA1

IPT65R105G7XTMA1

Part NumberIPT65R105G7XTMA1

ManufacturerInfineon Technologies

DescriptionHIGH POWER_NEW

DatasheetIPT65R105G7

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 24A (Tc) 156W (Tc) Surface Mount PG-HSOF-8-2

To learn about the specification of IPT65R105G7XTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPT65R105G7XTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPT65R105G7XTMA1.
We are offering IPT65R105G7XTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPT65R105G7XTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPT65R105G7
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolMOS™ C7
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	105mOhm @ 8.9A, 10V
Vgs(th) (Max) @ Id	4V @ 440µA
Gate Charge (Qg) (Max) @ Vgs	35nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1670pF @ 400V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HSOF-8-2
Package / Case	8-PowerSFN
