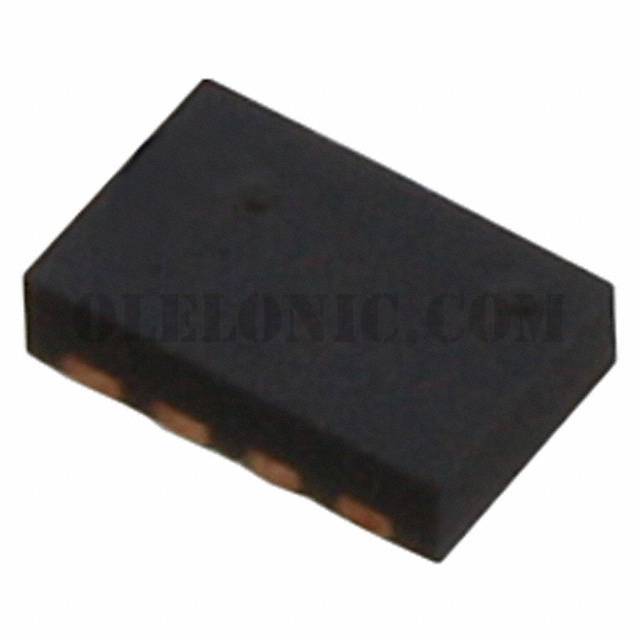

SI5476DU-T1-GE3

SI5476DU-T1-GE3

Part NumberSI5476DU-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 60V 12A PPAK CHIPFET

DatasheetSI5476DU

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 12A (Tc) 3.1W (Ta), 31W (Tc) Surface Mount 8-PowerPak® ChipFet (3x1.9)

To learn about the specification of SI5476DU-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI5476DU-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI5476DU-T1-GE3.
We are offering SI5476DU-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI5476DU-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SI5476DU
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	34mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	32nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1100pF @ 30V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PowerPak® ChipFet (3x1.9)
Package / Case	8-PowerVDFN
