SI3442BDV-T1-E3

SI3442BDV-T1-E3

Part NumberSI3442BDV-T1-E3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 20V 3A 6-TSOP

DatasheetSI3442BDV

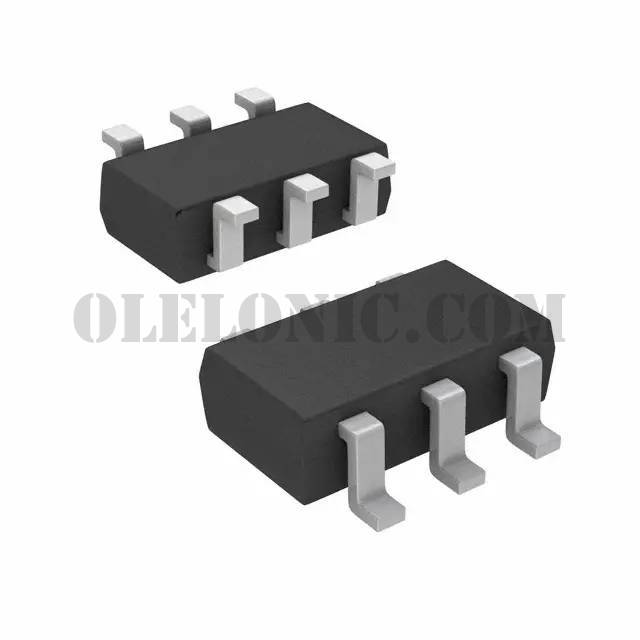

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 3A (Ta) 860mW (Ta) Surface Mount 6-TSOP

To learn about the specification of SI3442BDV-T1-E3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI3442BDV-T1-E3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI3442BDV-T1-E3.
We are offering SI3442BDV-T1-E3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI3442BDV-T1-E3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SI3442BDV
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	57mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	295pF @ 10V
FET Feature	-
Power Dissipation (Max)	860mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
