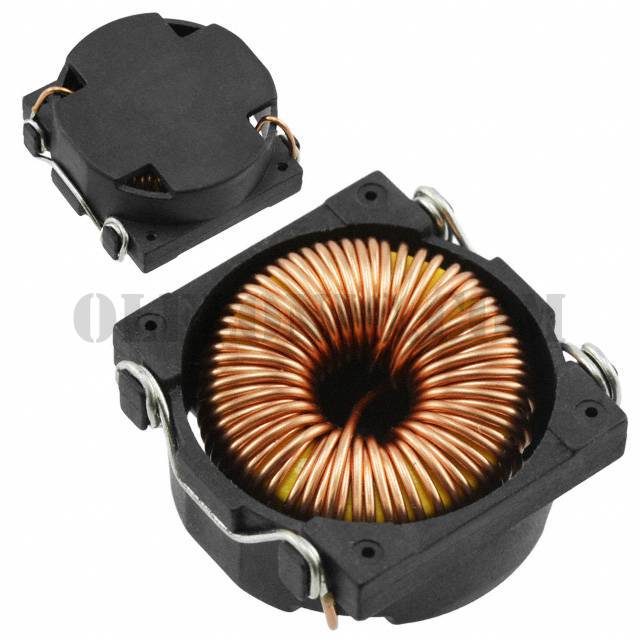

SH150S-3.00-77

SH150S-3.00-77

Part NumberSH150S-3.00-77

ManufacturerAmgis, LLC

DescriptionFIXED IND 77UH 3A 80 MOHM SMD

DatasheetSH150 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description77µH Unshielded Toroidal Inductor 3A 80mOhm Nonstandard

To learn about the specification of SH150S-3.00-77, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150S-3.00-77 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150S-3.00-77.
We are offering SH150S-3.00-77 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150S-3.00-77 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SH150 Series
Standard Package	150
Manufacturer	Amgis, LLC
Series	SH150
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	77µH
Tolerance	±20%
Current Rating (Amps)	3A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	80mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.957" L x 0.925" W (24.30mm x 23.50mm)
Height - Seated (Max)	0.427" (10.85mm)
