SCT2750NYTB

SCT2750NYTB

Part NumberSCT2750NYTB

ManufacturerRohm Semiconductor

Description1700V .75 OHM 6A SIC FET

DatasheetSCT2750NY

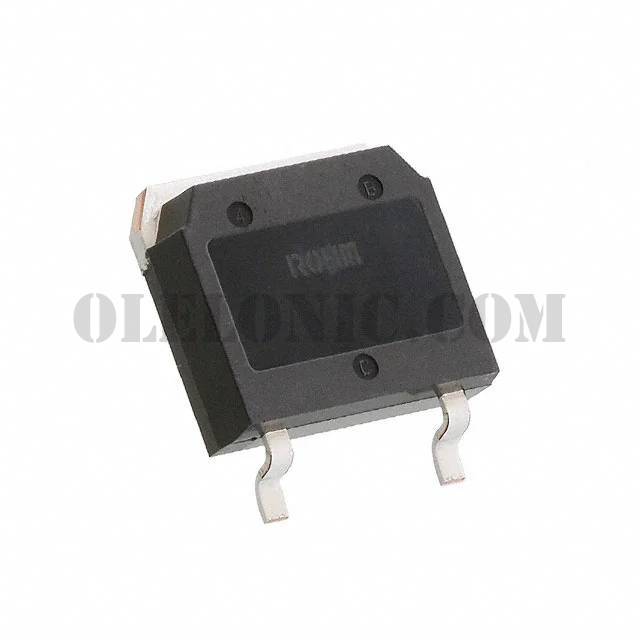

Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1700V 5.9A (Tc) 57W (Tc) Surface Mount TO-268

To learn about the specification of SCT2750NYTB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCT2750NYTB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCT2750NYTB.
We are offering SCT2750NYTB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCT2750NYTB - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SCT2750NY
Standard Package	400
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1700V
Current - Continuous Drain (Id) @ 25°C	5.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	18V
Rds On (Max) @ Id, Vgs	975mOhm @ 1.7A, 18V
Vgs(th) (Max) @ Id	4V @ 630µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 18V
Vgs (Max)	+22V, -6V
Input Capacitance (Ciss) (Max) @ Vds	275pF @ 800V
FET Feature	-
Power Dissipation (Max)	57W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
