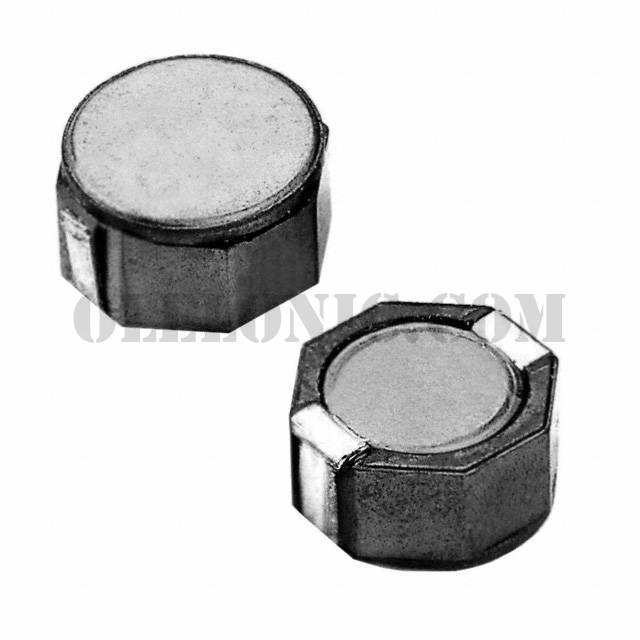

SCRH8D43-680


SCRH8D43-680

Part NumberSCRH8D43-680

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SCRH8D43-680 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package800
ManufacturerSignal Transformer
SeriesSCRH8D43
PackagingTape & Reel (TR)
Part StatusActive
Type-
Material - Core-
Inductance68µH
Tolerance±30%
Current Rating (Amps)1.2A
Current - Saturation1.2A
ShieldingShielded
DC Resistance (DCR)240mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.327" L x 0.327" W (8.30mm x 8.30mm)
Height - Seated (Max)0.185" (4.70mm)
