SC-05-100
SC-05-100

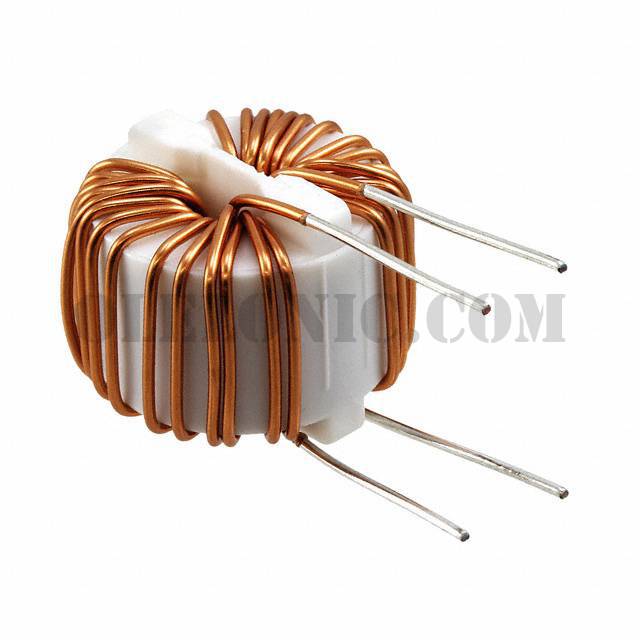

Part Number SC-05-100 Manufacturer KEMET Description COMMON MODE CHOKE 1MH 5A 2LN TH Package / Case Vertical, No Base, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 5A DCR 50mOhm
To learn about the specification of SC-05-100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-05-100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-05-100.
We are offering SC-05-100 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SC-05-100 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SC, Standard Type Standard Package 300 Manufacturer KEMET Series SC Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1mH @ 100kHz Current Rating (Max) 5A DC Resistance (DCR) (Max) 50mOhm Voltage Rating - DC 250V Voltage Rating - AC 250V Operating Temperature -25°C ~ 105°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.984" Dia x 0.728" W (25.00mm x 18.50mm) Height (Max) 0.984" (25.00mm) Package / Case Vertical, No Base, 4 PC Pin
