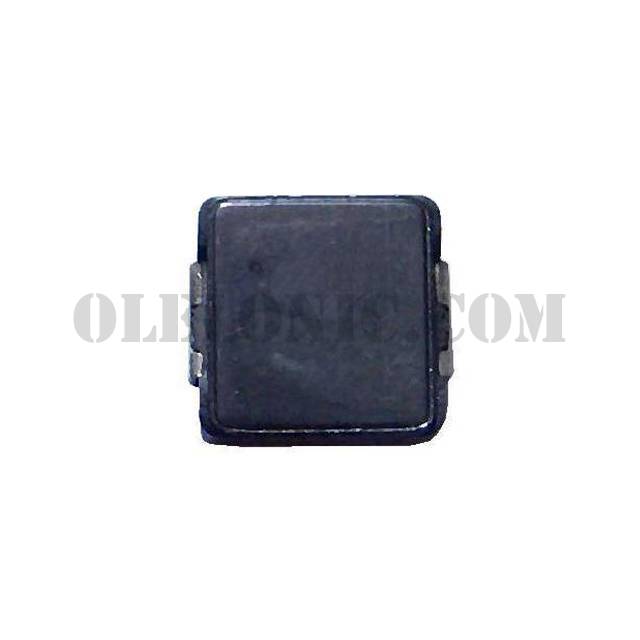

SCIHP1367-3R3M


SCIHP1367-3R3M

Part NumberSCIHP1367-3R3M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SCIHP1367-3R3M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package250
ManufacturerSignal Transformer
SeriesSCIHP1367
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance3.3µH
Tolerance±20%
Current Rating (Amps)15A
Current - Saturation29A
ShieldingShielded
DC Resistance (DCR)6.8mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test200kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.543" L x 0.508" W (13.80mm x 12.90mm)
Height - Seated (Max)0.264" (6.70mm)
