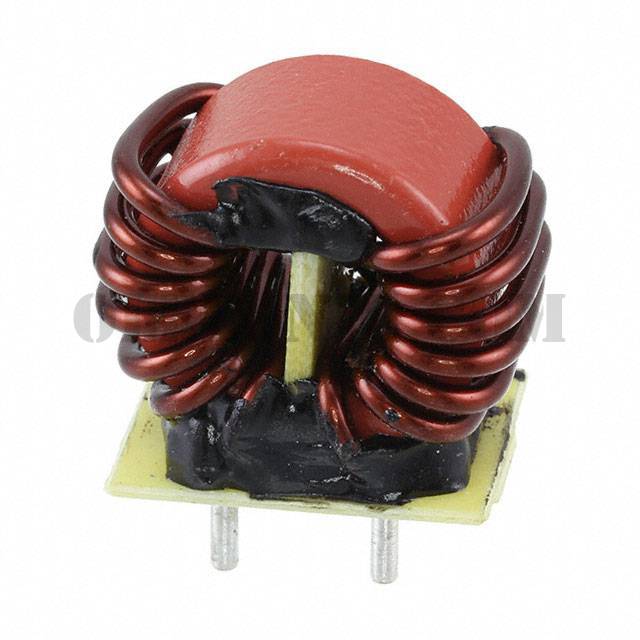

Part Number S14100038 Description CMC 560UH 20A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 560µH @ 10kHz 2 Line Common Mode Choke Through Hole 20A DCR 2.8mOhm
To learn about the specification of S14100038, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S14100038 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S14100038.
We are offering S14100038 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
S14100038 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet S14100038 Spec Sheet Standard Package 20 Manufacturer Wurth Electronics Inc. Series WE-CMB Packaging Tray Part Status Active Filter Type - Number of Lines 2 Inductance @ Frequency 560µH @ 10kHz Current Rating (Max) 20A DC Resistance (DCR) (Max) 2.8mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.181" Dia x 0.768" L (30.00mm x 19.50mm) Height (Max) 1.142" (29.00mm) Package / Case Vertical, 4 PC Pin
