744834101
744834101

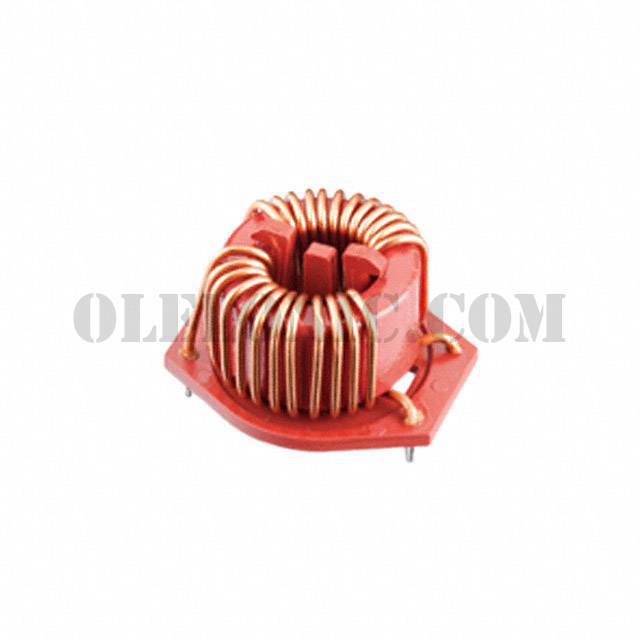

Part Number 744834101 Description COMMON MODE CHOKE 1MH 10A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 12.5mOhm
To learn about the specification of 744834101, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744834101 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744834101.
We are offering 744834101 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744834101 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 744834101 Drawing Standard Package 35 Manufacturer Wurth Electronics Inc. Series WE-CMBH Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1mH @ 10kHz Current Rating (Max) 10A DC Resistance (DCR) (Max) 12.5mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.280" L x 1.102" W (32.50mm x 28.00mm) Height (Max) 0.866" (22.00mm) Package / Case Horizontal, 4 PC Pin
