744821120
744821120

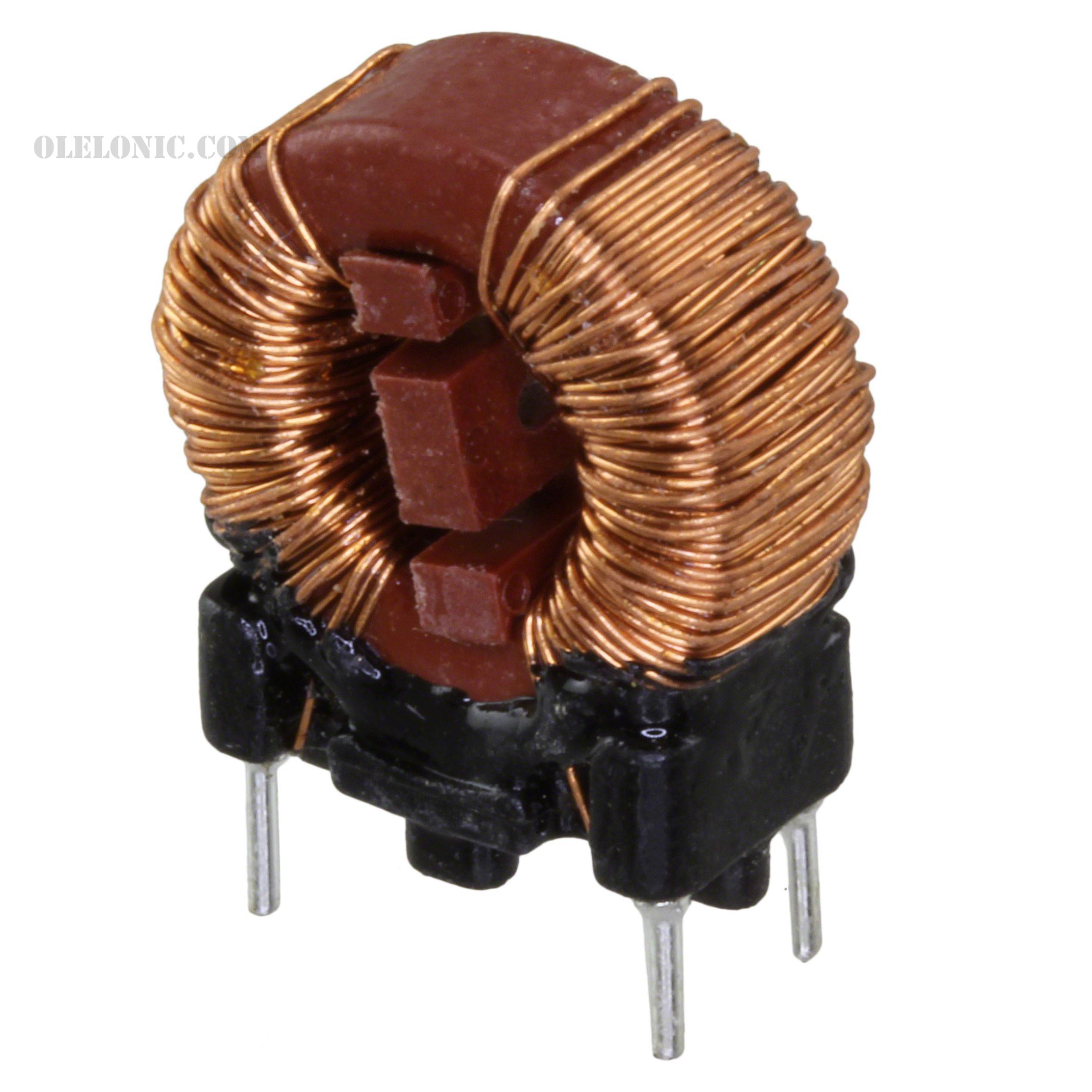

Part Number 744821120 Description CMC 20MH 500MA 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 20mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1Ohm
To learn about the specification of 744821120, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744821120 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744821120.
We are offering 744821120 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744821120 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 744821120 Standard Package 300 Manufacturer Wurth Electronics Inc. Series WE-CMB Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 20mH @ 10kHz Current Rating (Max) 500mA DC Resistance (DCR) (Max) 1Ohm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.591" L x 0.295" W (15.00mm x 7.50mm) Height (Max) 0.689" (17.50mm) Package / Case Vertical, 4 PC Pin
