RJH60F7DPQ-A0#T0
RJH60F7DPQ-A0#T0

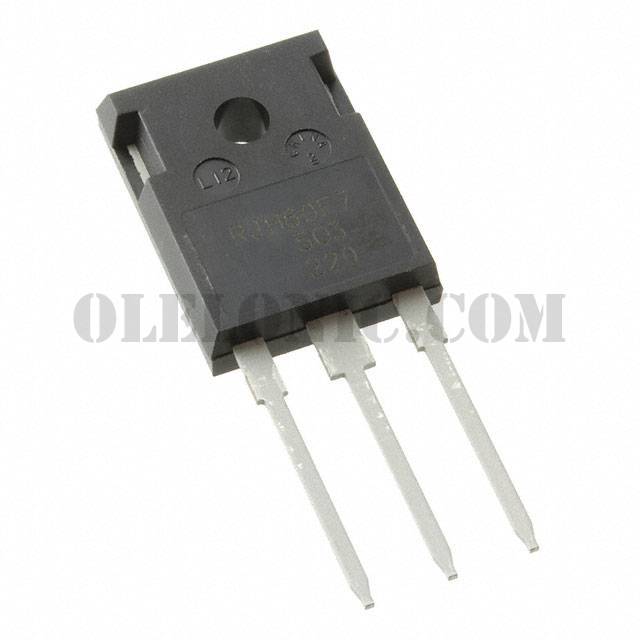

Part Number RJH60F7DPQ-A0#T0
Description IGBT 600V 90A 328.9W TO247A
Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench 600V 90A 328.9W Through Hole TO-247A
To learn about the specification of RJH60F7DPQ-A0#T0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJH60F7DPQ-A0#T0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJH60F7DPQ-A0#T0.
We are offering RJH60F7DPQ-A0#T0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RJH60F7DPQ-A0#T0 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet RJH60F7DPQ-A0
Standard Package 25
Manufacturer Renesas Electronics America
Series -
Packaging Tube
Part Status Not For New Designs
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 90A
Vce(on) (Max) @ Vge, Ic 1.75V @ 15V, 50A
Power - Max 328.9W
Switching Energy -
Input Type Standard
Td (on/off) @ 25°C 63ns/142ns
Test Condition 400V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr) 90ns
Operating Temperature 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247A
Base Part Number RJH60F
