AUIRGSL30B60K
AUIRGSL30B60K
Part Number AUIRGSL30B60K
Description IGBT 600V 78A 370W TO262

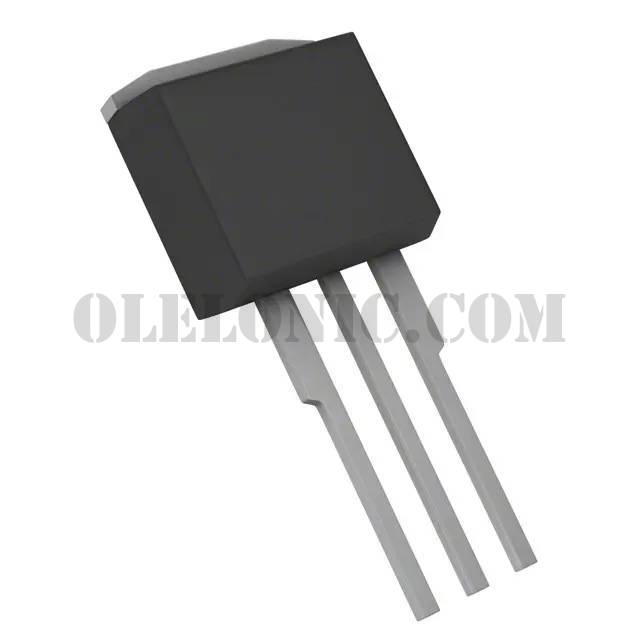

Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT NPT 600V 78A 370W Through Hole TO-262
To learn about the specification of AUIRGSL30B60K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AUIRGSL30B60K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AUIRGSL30B60K.
We are offering AUIRGSL30B60K for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
AUIRGSL30B60K - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet AUIRGS(L)30B60K
Standard Package 1000
Manufacturer Infineon Technologies
Series -
Packaging Tube
Part Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 78A
Current - Collector Pulsed (Icm) 120A
Vce(on) (Max) @ Vge, Ic 2.35V @ 15V, 30A
Power - Max 370W
Switching Energy 350µJ (on), 825µJ (off)
Input Type Standard
Gate Charge 102nC
Td (on/off) @ 25°C 46ns/185ns
Test Condition 400V, 30A, 10Ohm, 15V
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package TO-262
