IXBX50N360HV
IXBX50N360HV

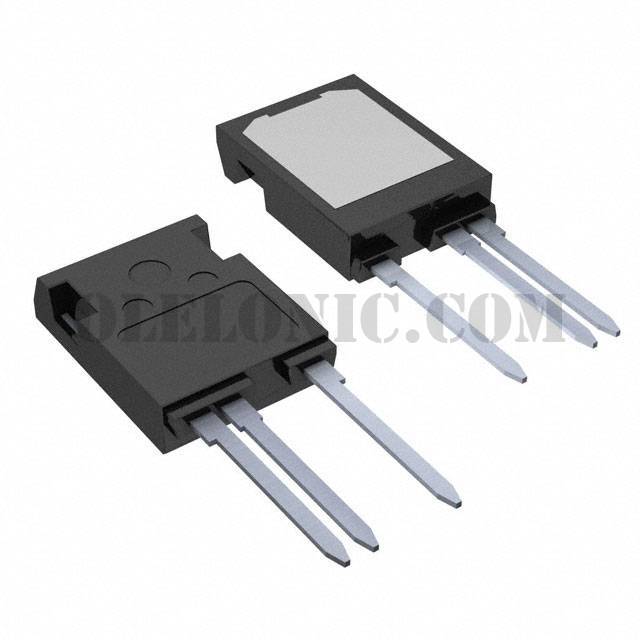

Part Number IXBX50N360HV Manufacturer IXYS Description IGBT 3600V 125A 660W TO-247PLUS Package / Case TO-247-3 VariantUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 3600V 125A 660W Through Hole TO-247PLUS-HV
To learn about the specification of IXBX50N360HV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXBX50N360HV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXBX50N360HV.
We are offering IXBX50N360HV for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXBX50N360HV - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXBX50N360HV Standard Package 30 Manufacturer IXYS Series BIMOSFET™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 3600V Current - Collector (Ic) (Max) 125A Current - Collector Pulsed (Icm) 420A Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 50A Power - Max 660W Switching Energy - Input Type Standard Gate Charge 210nC Td (on/off) @ 25°C 46ns/205ns Test Condition 960V, 50A, 5Ohm, 15V Reverse Recovery Time (trr) 1.7µs Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Variant Supplier Device Package TO-247PLUS-HV
