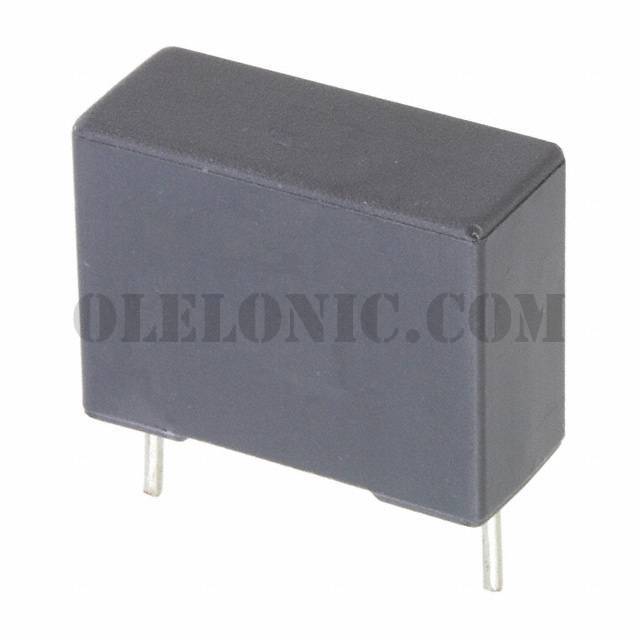

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1000
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±10%
Voltage Rating - AC	180V
Voltage Rating - DC	250V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max)	0.532" (13.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
