Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	805
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.236" W (26.50mm x 6.00mm)
Height - Seated (Max)	0.594" (15.10mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76PR34704030J	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QN3100SE30J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI26804030J	KEMET, 0.068µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76TR32204030J	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76PD1220SE00K	KEMET, 2200pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UI12204030J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UW3100SE30K	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR34704030J	KEMET, 0.47µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MF2220SE30J	KEMET, 0.022µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QR31004040J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR3150SE30J	KEMET, 0.15µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI1470SE40J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View

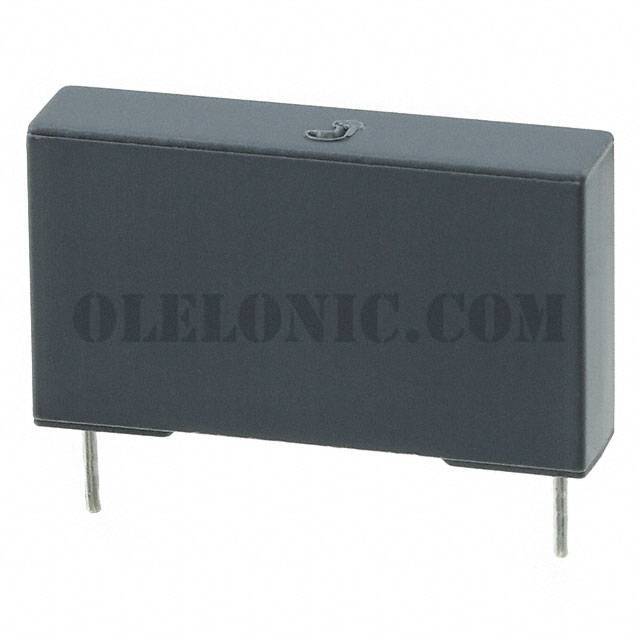

R76PN3100SE30J

Part NumberR76PN3100SE30J
