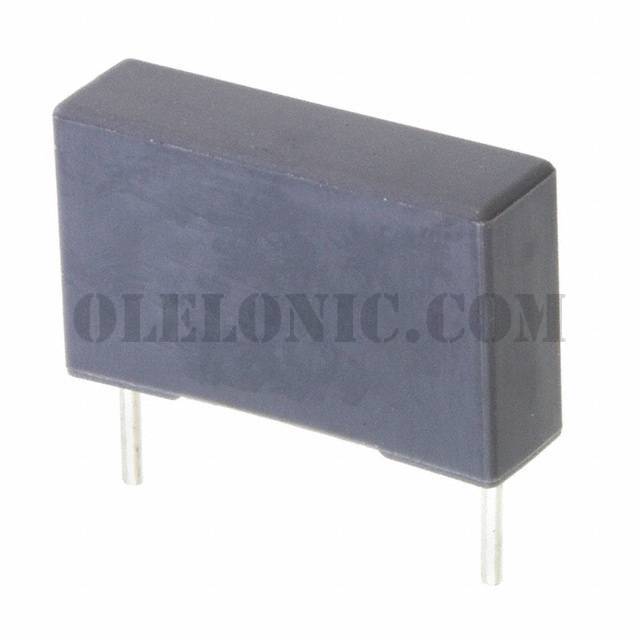

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	2000
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	4700pF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76QI2220JE40J	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF14704030J	KEMET, 4700pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN22204030J	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QD1100SE40J	KEMET, 1000pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR3220SE30J	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI31004030J	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76TI21004040J	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI31004030J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QW3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UN24704040J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF13304030J	KEMET, 3300pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View

R76UI1470SE40J

Part NumberR76UI1470SE40J
