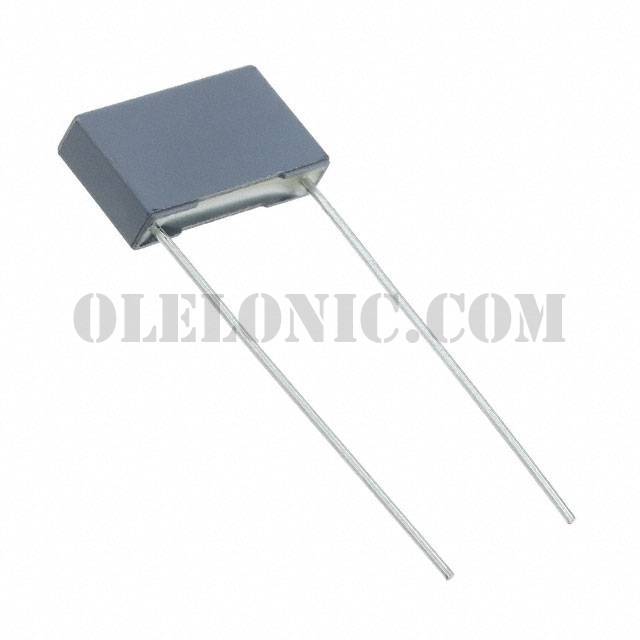

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1500
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	100pF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.157" W (18.00mm x 4.00mm)
Height - Seated (Max)	0.398" (10.10mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
