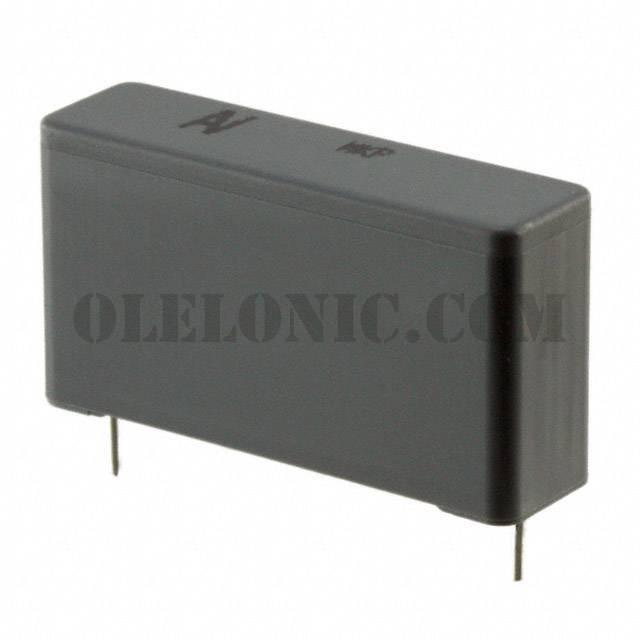

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	816
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±10%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.354" W (32.00mm x 9.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76TN31004040J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QD0220SE00J	KEMET, 220pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI3100SE30K	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QW3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TR3330SE30J	KEMET, 0.33µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76TR3100SE30J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN22204030J	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI02204000J	KEMET, 220pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QN31004030J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UR31004030J	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PR3470SE30J	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View

R76QR3100SE40K

Part NumberR76QR3100SE40K
