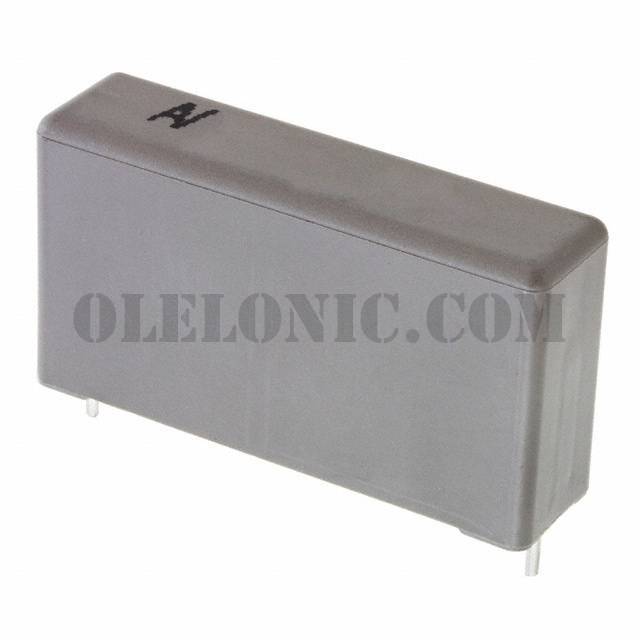

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	420
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±10%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.433" W (41.50mm x 11.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76MN34704030J	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76MI2470SE30K	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76PN32204030J	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UN1220SE00J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PF1680SE00K	KEMET, 6800pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76MN3470SE30J	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76UR3100SE30K	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN3100SE40K	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI14704040J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UR2680SE30J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TR3220SE30K	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI1100SE30J	KEMET, 1000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View

R76QW3220SE30K

Part NumberR76QW3220SE30K
