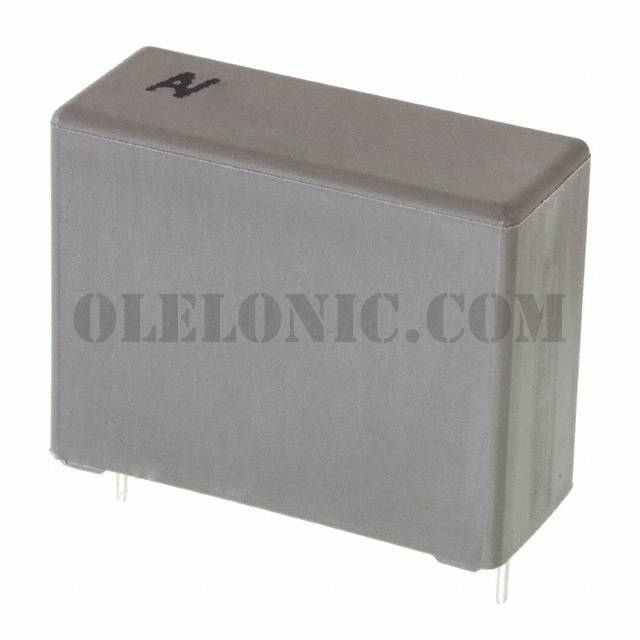

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	480
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.68µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.512" W (32.00mm x 13.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76UN24704040J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI21004040J	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QD0220SE00J	KEMET, 220pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI3100SE30K	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UI11004030J	KEMET, 1000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PN3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UI1470SE40J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UR26804030J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PF21004030J	KEMET, 10000pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76MD2100SE40J	KEMET, 10000pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QN31004030J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PR3470SE30J	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View

R76PR3680SE40J

Part NumberR76PR3680SE40J
