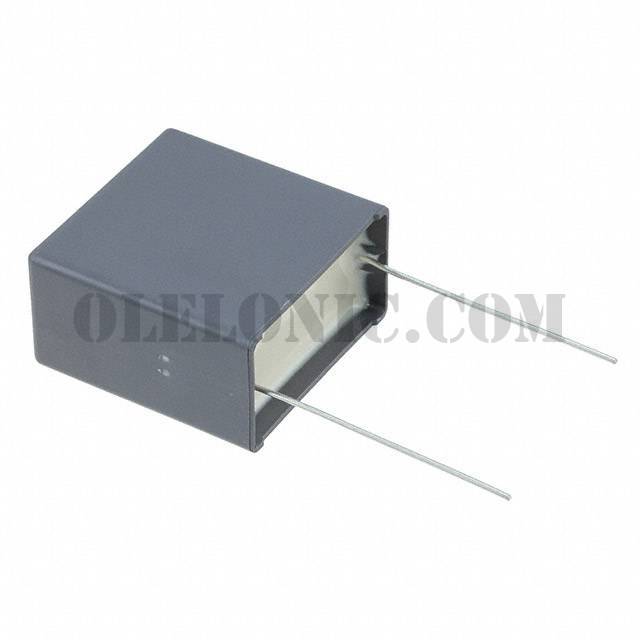

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	128
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.709" W (32.00mm x 18.00mm)
Height - Seated (Max)	1.303" (33.10mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76TN3100SE40K	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76PR34704030J	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UR26804030J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI14704040J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI21004040J	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF11504000K	KEMET, 1500pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TW32204030J	KEMET, 0.22µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR3150SE30J	KEMET, 0.15µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76IF24704030K	KEMET, 0.047µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76QR3100SE40J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PI26804030J	KEMET, 0.068µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View

R76PR41004030J

Part NumberR76PR41004030J
