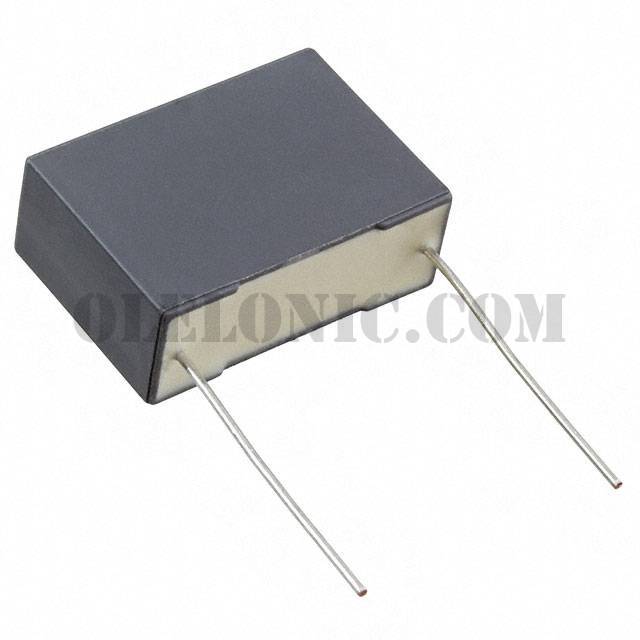

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	300
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.394" W (26.50mm x 10.00mm)
Height - Seated (Max)	0.732" (18.60mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76PF1680SE00K	KEMET, 6800pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PF2100SE30J	KEMET, 10000pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QN24704030J	KEMET, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI14704040J	KEMET, 4700pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76ID2470SE30J	KEMET, 0.047µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76QR3150SE30J	KEMET, 0.15µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI21004040J	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI1470SE40J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PN33304030J	KEMET, 0.33µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QR3100SE40J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UR26804030J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF1220SE00J	KEMET, 2200pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

R76QN31004030J

Part NumberR76QN31004030J
