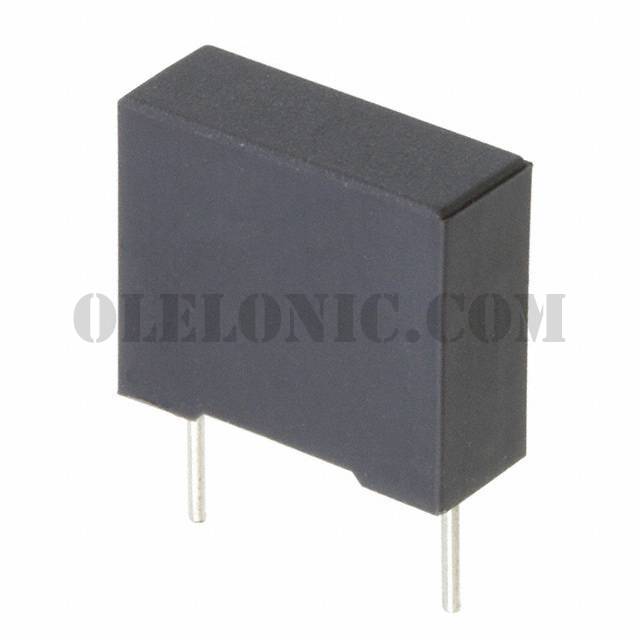

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1300
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max)	0.437" (11.10mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
