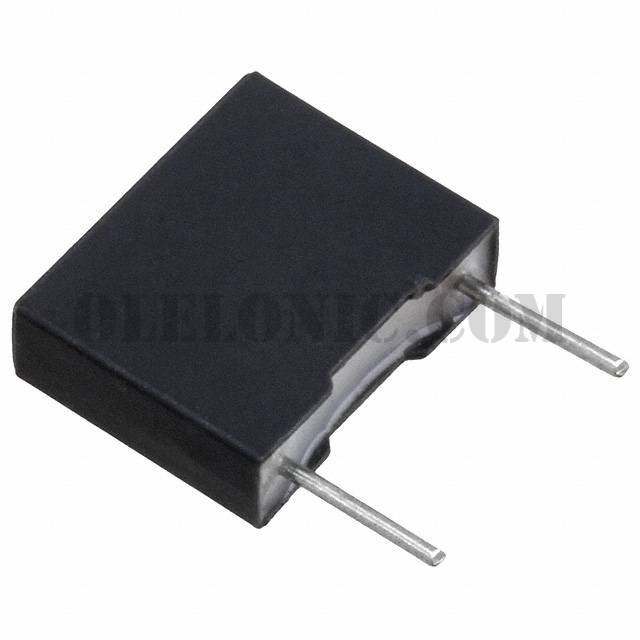

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1500
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	4700pF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max)	0.319" (8.10mm)
Termination	PC Pins
Lead Spacing	0.295" (7.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
