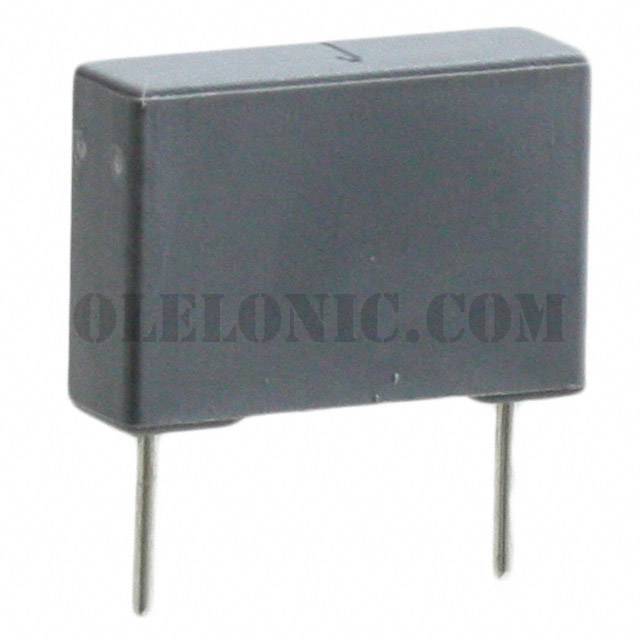

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	2000
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	1000pF
Tolerance	±5%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.157" W (13.00mm x 4.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76PR41004030J	KEMET, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UI12204030J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UW3100SE30K	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN23304040J	KEMET, 0.033µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76TW34704030J	KEMET, 0.47µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76PR36804040J	KEMET, 0.68µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PI23304030J	KEMET, 0.033µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UI1470SE40J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN31004040J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI31004030J	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QD0470SE00K	KEMET, 470pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QI2220JE40J	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

R76QF1100SE00J

Part NumberR76QF1100SE00J
