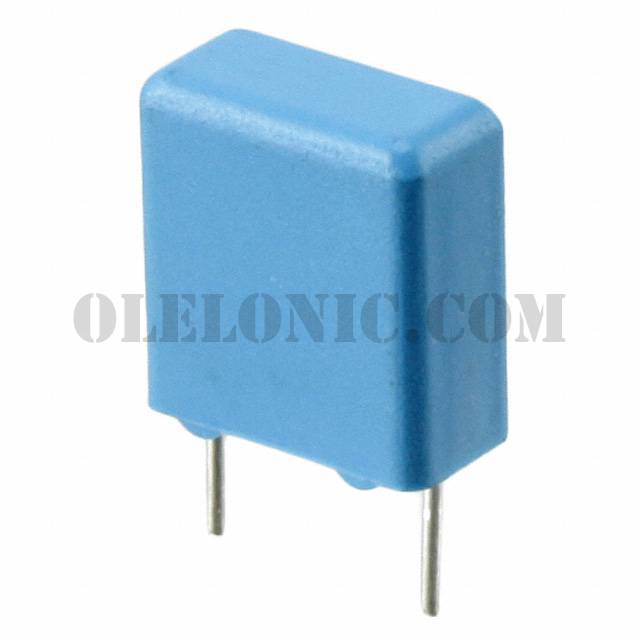

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	1000
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	300V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.394" L x 0.197" W (10.00mm x 5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Termination	PC Pins
Lead Spacing	0.295" (7.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450KF6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5470JR06	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK3470JR05	KEMET, 470pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6100JR17	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4470JR06	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4560JR06	KEMET, 5600pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4100JB04R17	KEMET, 1000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6220JR06L2	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KK5100JR05	KEMET, 10000pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4220JB10R17	KEMET, 2200pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View

PHE450MK5100JR05

Part NumberPHE450MK5100JR05
