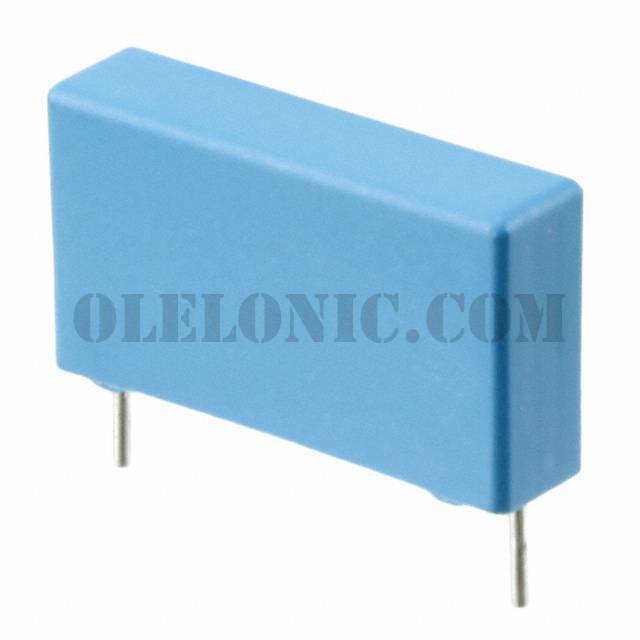

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	234
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.047µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.256" W (26.00mm x 6.50mm)
Height - Seated (Max)	0.571" (14.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450PF6470JF13R06L2	KEMET, 0.47µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD5470JD19R06L2	KEMET, 0.047µF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4560JR05	KEMET, 5600pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RB4470JR06	KEMET, 4700pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6330JR06L2	KEMET, 0.33µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF7220JR06L2	KEMET, 2.2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5220JD20R06L2	KEMET, 0.022µF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MB5470JR06	KEMET, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4270JR05	KEMET, 2700pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5330JR17	KEMET, 0.033µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450MD5470JR06L2

Part NumberPHE450MD5470JR06L2
