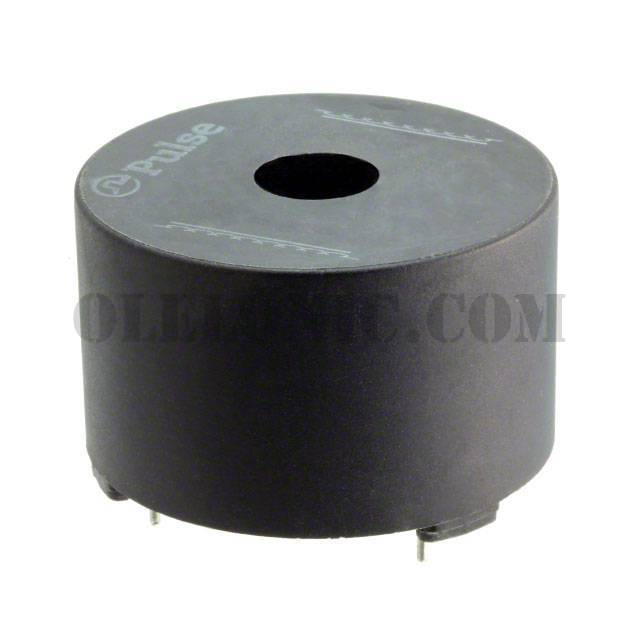

PE-96190NL

PE-96190NL

Part NumberPE-96190NL

ManufacturerPulse Electronics Power

DescriptionCOMMON MODE CHOKE 15A 2LN TH

DatasheetPE-961xx Series

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 15A (Typ) DCR 10mOhm

To learn about the specification of PE-96190NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-96190NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-96190NL.
We are offering PE-96190NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-96190NL - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	PE-961xx Series
Standard Package	30
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Current Rating (Max)	15A (Typ)
DC Resistance (DCR) (Max)	10mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.700" Dia (43.18mm)
Height (Max)	1.030" (26.16mm)
Package / Case	Horizontal, 4 PC Pin

PE-96190NL - Related Products

	PE-96190NL	Pulse Electronics Power, 2 Line Common Mode Choke Through Hole 15A (Typ) DCR 10mOhm,	View
	PE-96186NL	Pulse Electronics Power, 2 Line Common Mode Choke Through Hole 6.3A (Typ) DCR 40mOhm,	View
