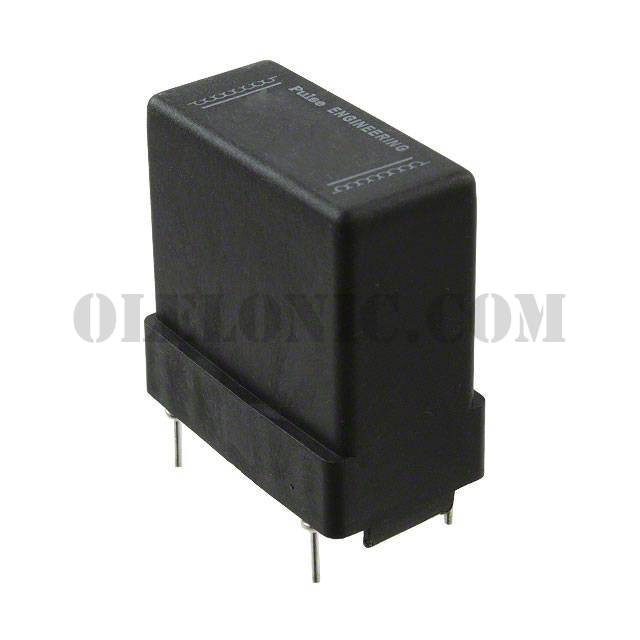

PE-96186NL

PE-96186NL

Part NumberPE-96186NL

ManufacturerPulse Electronics Power

DescriptionCOMMON MODE CHOKE 6.3A 2LN TH

DatasheetPE-961xx Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 6.3A (Typ) DCR 40mOhm

To learn about the specification of PE-96186NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-96186NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-96186NL.
We are offering PE-96186NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-96186NL - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	PE-961xx Series
Standard Package	15
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tube
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Current Rating (Max)	6.3A (Typ)
DC Resistance (DCR) (Max)	40mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.299" L x 0.720" W (33.00mm x 18.29mm)
Height (Max)	1.350" (34.29mm)
Package / Case	Vertical, 4 PC Pin

PE-96186NL - Related Products

	PE-96190NL	Pulse Electronics Power, 2 Line Common Mode Choke Through Hole 15A (Typ) DCR 10mOhm,	View
	PE-96186NL	Pulse Electronics Power, 2 Line Common Mode Choke Through Hole 6.3A (Typ) DCR 40mOhm,	View
