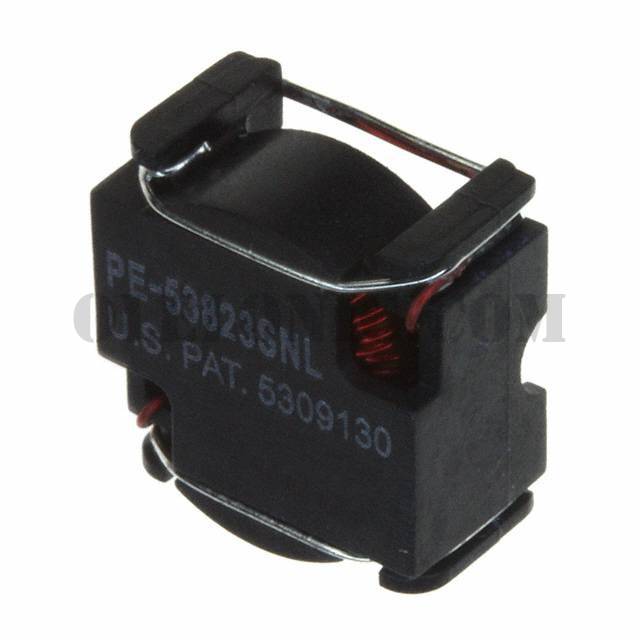

PE-53823SNL

PE-53823SNL

Part NumberPE-53823SNL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 38UH 1.2A 100 MOHM SMD

DatasheetTHT/SMT Power Inductors - Toroid, Simple Switcher

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description38µH Shielded Toroidal Inductor 1.2A 100mOhm Nonstandard

To learn about the specification of PE-53823SNL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53823SNL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53823SNL.
We are offering PE-53823SNL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-53823SNL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	30
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	38µH
Tolerance	±20%
Current Rating (Amps)	1.2A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	100mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Max)	0.360" (9.14mm)
