Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	PE-526xx, PE-531xx, PE-92114K, PE92108K
Standard Package	35
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	470µH
Tolerance	±20%
Current Rating (Amps)	2A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	170mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	1.300" L x 0.700" W (33.02mm x 17.78mm)
Height - Seated (Max)	1.400" (35.56mm)

PE-53116NL	Pulse Electronics Power, 220µH Unshielded Toroidal Inductor 3A 70mOhm Max Radial, Vertical (Open),	View
PE-54041SNLT	Pulse Electronics Power, 25µH Shielded Toroidal Inductor 3A 40mOhm Nonstandard,	View
PE-53820SNLT	Pulse Electronics Power, 115µH Shielded Toroidal Inductor 670mA 400mOhm Nonstandard,	View
PE-54043NL	Pulse Electronics Power, 121µH Shielded Toroidal Inductor 3A 90mOhm Radial, Vertical (Open),	View
PE-53811SNL	Pulse Electronics Power, 118µH Shielded Toroidal Inductor 380mA 1.2Ohm Nonstandard,	View
PE-53808SNL	Pulse Electronics Power, 374µH Shielded Toroidal Inductor 200mA 2.7Ohm Nonstandard,	View
PE-54040NL	Pulse Electronics Power, 38µH Shielded Toroidal Inductor 3A 50mOhm Radial, Vertical (Open),	View
PE-53826SNLT	Pulse Electronics Power, 377µH Shielded Toroidal Inductor 680mA 1Ohm Nonstandard,	View
PE-53117NL	Pulse Electronics Power, 330µH Unshielded Toroidal Inductor 3A 150mOhm Max Radial, Vertical (Open),	View
PE-53831SNLT	Pulse Electronics Power, 53µH Shielded Toroidal Inductor 1.87A 130mOhm Nonstandard,	View
PE-54041NL	Pulse Electronics Power, 25µH Shielded Toroidal Inductor 3A 40mOhm Radial, Vertical (Open),	View
PE-53829SNL	Pulse Electronics Power, 112µH Shielded Toroidal Inductor 1.26A 300mOhm Nonstandard,	View

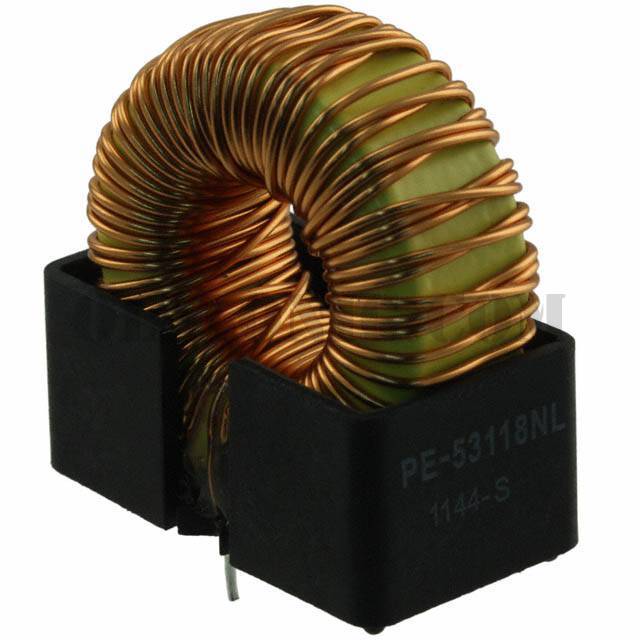

PE-53118NL

Part NumberPE-53118NL
