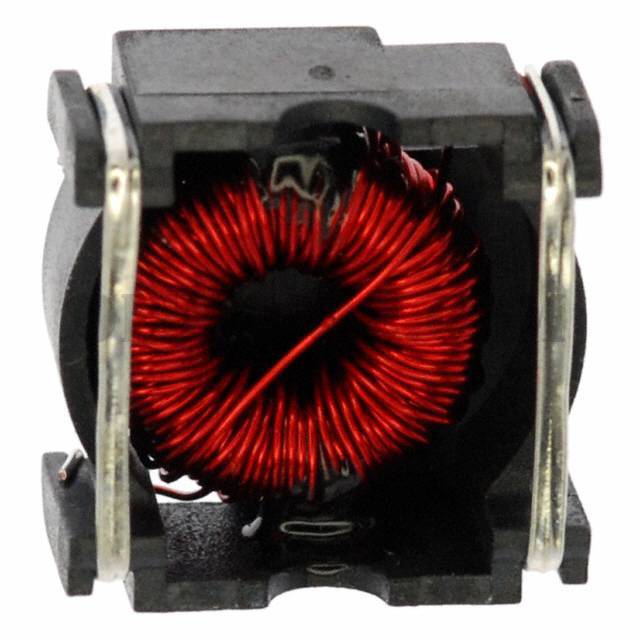

PE-53821SNLT


PE-53821SNLT

Part NumberPE-53821SNLT

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PE-53821SNLT - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package200
ManufacturerPulse Electronics Power
Series-
PackagingTape & Reel (TR)
Part StatusActive
TypeToroidal
Material - Core-
Inductance78µH
Tolerance±20%
Current Rating (Amps)820mA
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)300mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 130°C
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Max)0.360" (9.14mm)
