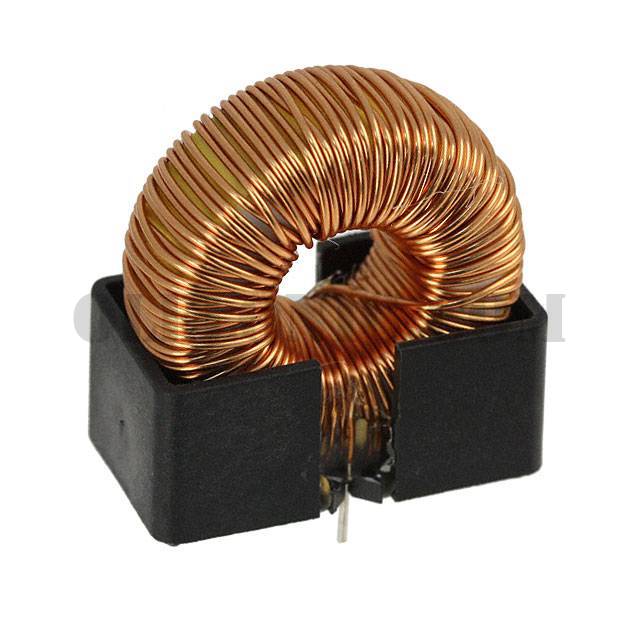

PE-53120NL

PE-53120NL

Part NumberPE-53120NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 1MH 950MA 240 MOHM TH

DatasheetPE-526xx, PE-531xx, PE-92114K, PE92108K

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1mH Unshielded Toroidal Inductor 950mA 240mOhm Max Radial, Vertical (Open)

To learn about the specification of PE-53120NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53120NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53120NL.
We are offering PE-53120NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-53120NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	PE-526xx, PE-531xx, PE-92114K, PE92108K
Standard Package	35
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tube
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	1mH
Tolerance	±20%
Current Rating (Amps)	950mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	240mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	1.300" L x 0.700" W (33.02mm x 17.78mm)
Height - Seated (Max)	1.400" (35.56mm)
