Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	45
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	17µH
Tolerance	±20%
Current Rating (Amps)	1.02A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	100mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.440" L x 0.435" W (11.18mm x 11.05mm)
Height - Seated (Max)	0.360" (9.14mm)

PE-53812SNL	Pulse Electronics Power, 78µH Shielded Toroidal Inductor 460mA 800mOhm Nonstandard,	View
PE-54041NL	Pulse Electronics Power, 25µH Shielded Toroidal Inductor 3A 40mOhm Radial, Vertical (Open),	View
P0846SNLT	Pulse Electronics Power, 15µH Shielded Toroidal Inductor 5A 27mOhm Nonstandard, LCI-50	View
PE-53829SNLT	Pulse Electronics Power, 112µH Shielded Toroidal Inductor 1.26A 300mOhm Nonstandard,	View
PE-54043NL	Pulse Electronics Power, 121µH Shielded Toroidal Inductor 3A 90mOhm Radial, Vertical (Open),	View
PE-53825SNL	Pulse Electronics Power, 18µH Shielded Toroidal Inductor 1.81A 60mOhm Nonstandard,	View
PE-53815SNL	Pulse Electronics Power, 26µH Shielded Toroidal Inductor 840mA 200mOhm Nonstandard,	View
PE-54042NL	Pulse Electronics Power, 167µH Shielded Toroidal Inductor 2.5A 140mOhm Radial, Vertical (Open),	View
PE-53932SNLT	Pulse Electronics Power, 37µH Shielded Toroidal Inductor 2.24A 100mOhm Nonstandard,	View
PE-53112NL	Pulse Electronics Power, 47µH Unshielded Toroidal Inductor 3A 50mOhm Max Radial, Vertical (Open),	View
PE-53822SNLT	Pulse Electronics Power, 54µH Shielded Toroidal Inductor 1A 200mOhm Nonstandard,	View
PE-53831SNLT	Pulse Electronics Power, 53µH Shielded Toroidal Inductor 1.87A 130mOhm Nonstandard,	View

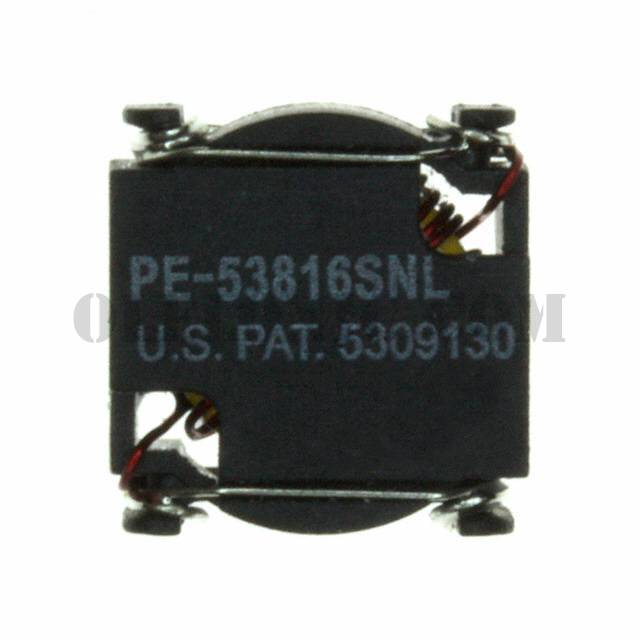

PE-53816SNL

Part NumberPE-53816SNL
