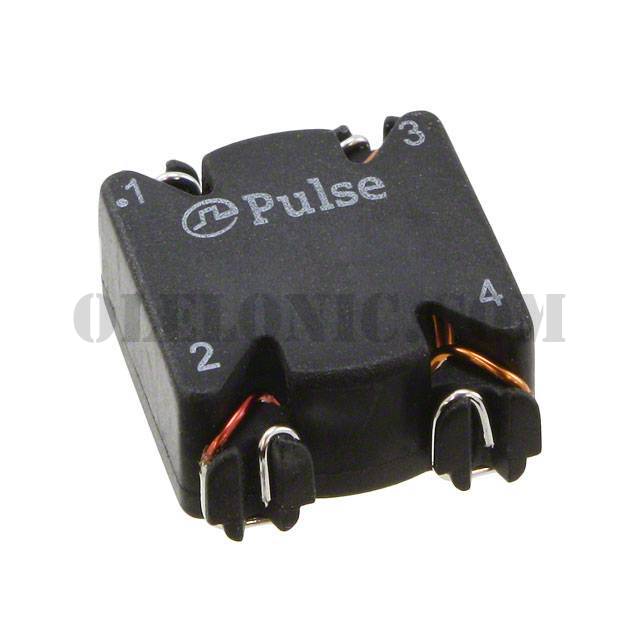

PA2751NL


PA2751NL

Part NumberPA2751NL

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PA2751NL - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package35
ManufacturerPulse Electronics Power
Series-
PackagingTube
Part StatusActive
Filter TypePower Line
Number of Lines2
Current Rating (Max)4.2A
DC Resistance (DCR) (Max)16mOhm
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-40°C ~ 130°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.590" L x 0.715" W (14.99mm x 18.16mm)
Height (Max)0.300" (7.62mm)
Package / CaseHorizontal, 4 PC Pad
