PA2747NL
PA2747NL

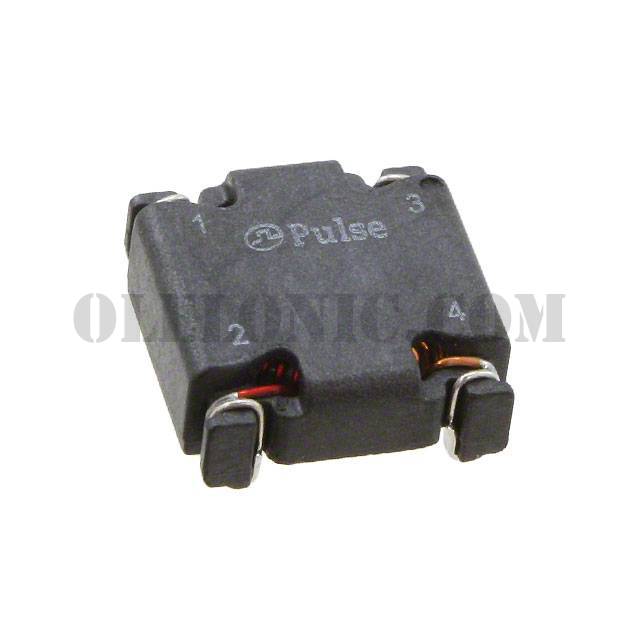

Part Number PA2747NL Description COMMON MODE CHOKE 7A 2LN SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 7A DCR 2.9mOhm
To learn about the specification of PA2747NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA2747NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA2747NL.
We are offering PA2747NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PA2747NL - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet PAyyyyNL Datasheet Standard Package 40 Manufacturer Pulse Electronics Power Series - Packaging Tube Part Status Active Filter Type - Number of Lines 2 Current Rating (Max) 7A DC Resistance (DCR) (Max) 2.9mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 130°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.508" L x 0.500" W (12.90mm x 12.70mm) Height (Max) 0.220" (5.60mm) Package / Case Horizontal, 4 PC Pad
