NVF6P02T3G

NVF6P02T3G

Part NumberNVF6P02T3G

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 10A SOT-223

DatasheetNTF6P02, NVF6P02

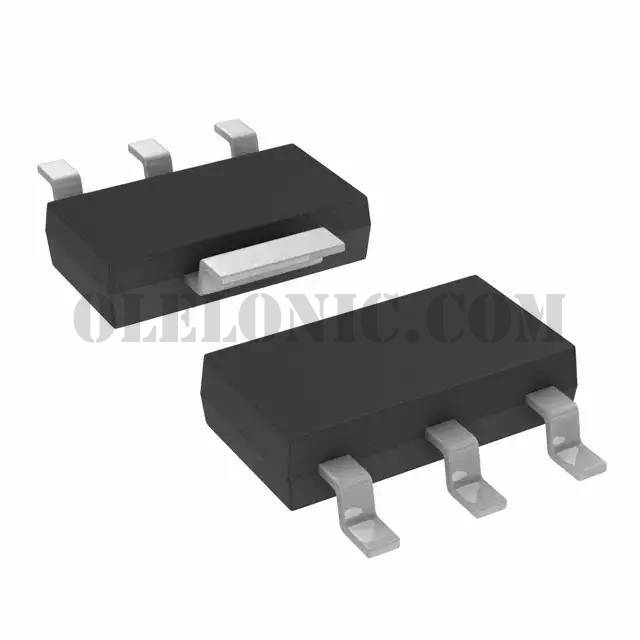

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 10A (Ta) 8.3W (Ta) Surface Mount SOT-223 (TO-261)

To learn about the specification of NVF6P02T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NVF6P02T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NVF6P02T3G.
We are offering NVF6P02T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NVF6P02T3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTF6P02, NVF6P02
Standard Package	4000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	50mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1200pF @ 16V
FET Feature	-
Power Dissipation (Max)	8.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223 (TO-261)
Package / Case	TO-261-4, TO-261AA
