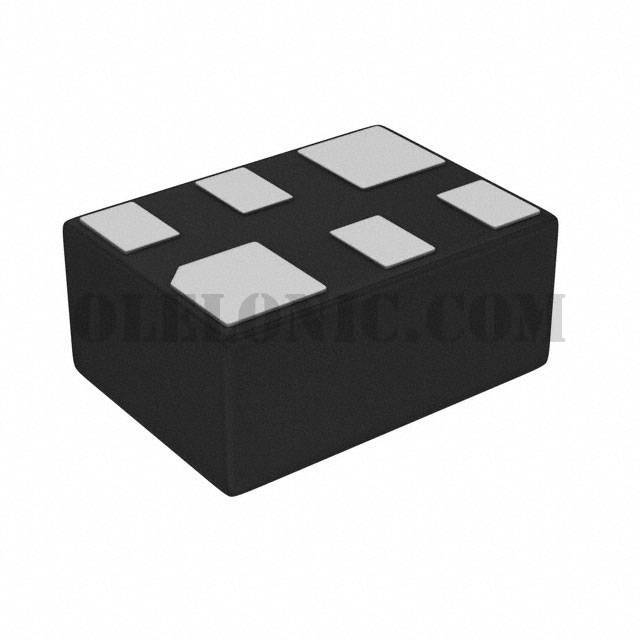

NTND31015NZTAG


NTND31015NZTAG

Part NumberNTND31015NZTAG

Manufacturer

Description

Datasheet

Package / Case6-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NTND31015NZTAG - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package1
ManufacturerON Semiconductor
Series-
PackagingCut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C200mA
Rds On (Max) @ Id, Vgs1.5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds12.3pF @ 15V
Power - Max125mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFLGA
Supplier Device Package6-XLLGA (.90x.65)
