SQJ262EP-T1_GE3

Part NumberSQJ262EP-T1_GE3

ManufacturerVishay Siliconix

DescriptionMOSFET 2 N-CH 60V POWERPAK SO8

DatasheetSQJ262EP

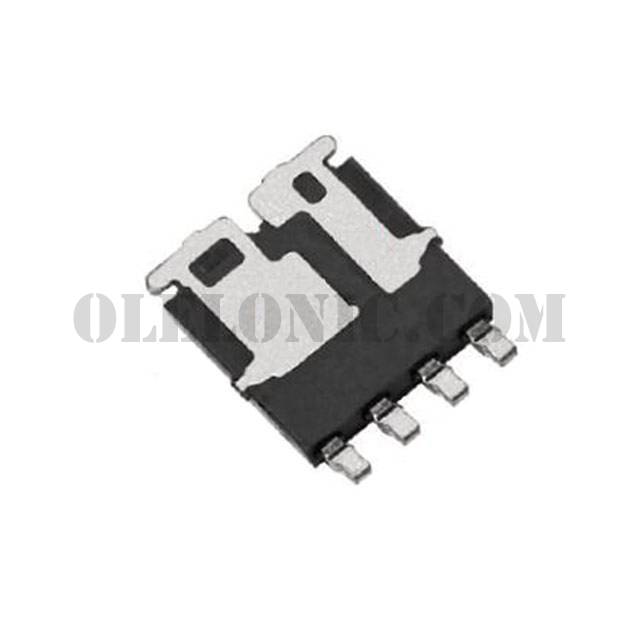

Package / CasePowerPAK® SO-8 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 15A (Tc), 40A (Tc) 27W (Tc), 48W (Tc) Surface Mount PowerPAK® SO-8 Dual Asymmetric

To learn about the specification of SQJ262EP-T1_GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SQJ262EP-T1_GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SQJ262EP-T1_GE3.
We are offering SQJ262EP-T1_GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SQJ262EP-T1_GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SQJ262EP
Standard Package	1
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	15A (Tc), 40A (Tc)
Rds On (Max) @ Id, Vgs	35.5mOhm @ 2A, 10V, 15.5mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V, 23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	550pF @ 25V, 1260pF @ 25V
Power - Max	27W (Tc), 48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual Asymmetric
