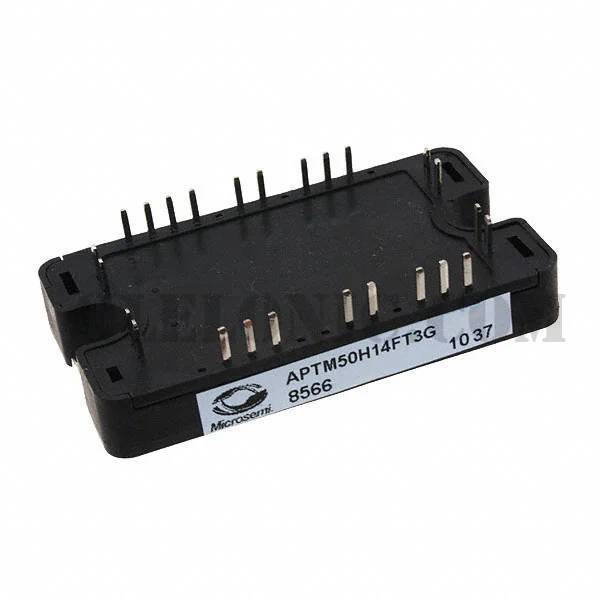

APTM50H14FT3G

Part NumberAPTM50H14FT3G

ManufacturerMicrosemi Corporation

DescriptionMOSFET 4N-CH 500V 26A SP3

DatasheetAPTM50H14FT3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 500V 26A 208W Chassis Mount SP3

To learn about the specification of APTM50H14FT3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM50H14FT3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM50H14FT3G.
We are offering APTM50H14FT3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM50H14FT3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM50H14FT3G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	4 N-Channel (H-Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	26A
Rds On (Max) @ Id, Vgs	168mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	72nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	3259pF @ 25V
Power - Max	208W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP3
Supplier Device Package	SP3
