Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	NSVF4017SG4
Standard Package	3000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10GHz
Noise Figure (dB Typ @ f)	1.2dB @ 1GHz
Gain	17dB
Power - Max	450mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 50mA, 5V
Current - Collector (Ic) (Max)	100mA
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

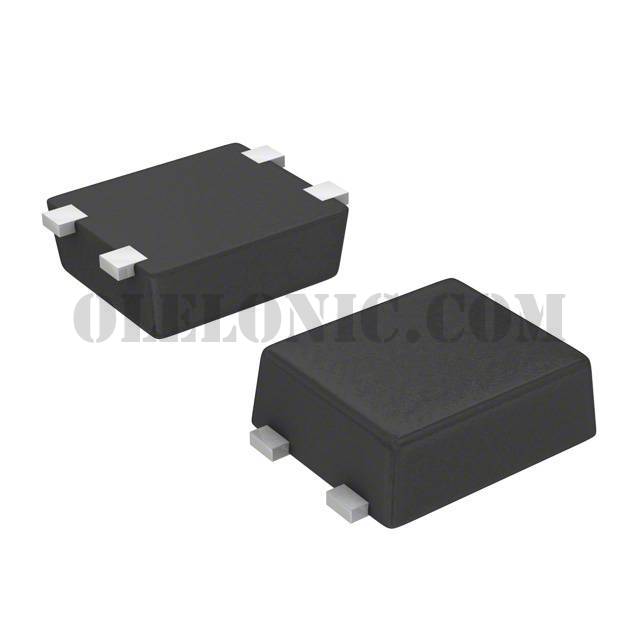

Package / Case	4-SMD, Flat Leads
Supplier Device Package	SC-82FL/MCPH4
