Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

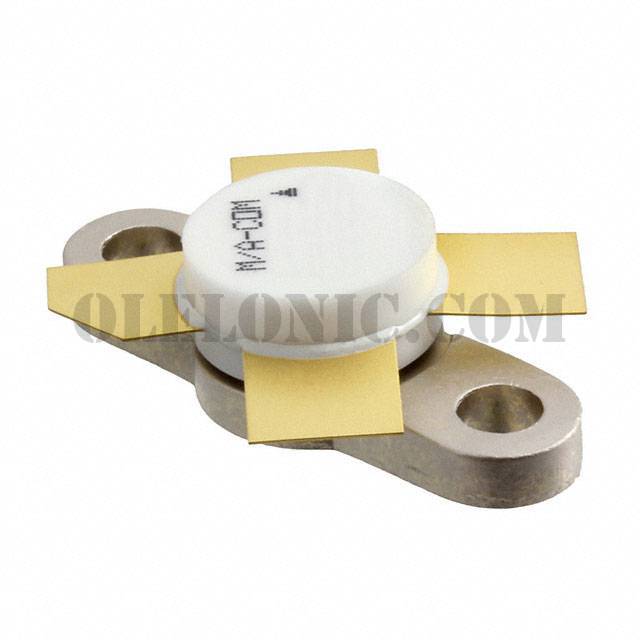

Datasheet	MRF314
Standard Package	20
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	35V
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Gain	13.5dB
Power - Max	30W
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 1.5A, 5V
Current - Collector (Ic) (Max)	3.4A
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	211-07
Supplier Device Package	211-07, Style 1
