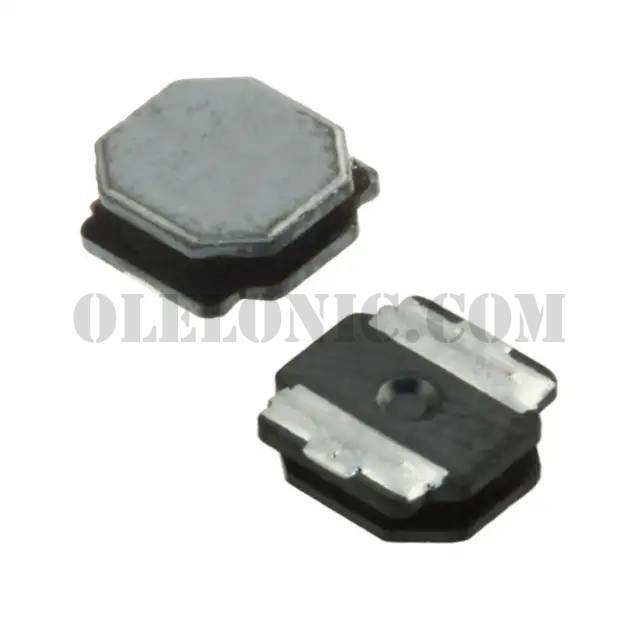

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NRS5024T100MMGJ View all Specification
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR, S Type
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	1.2A
Current - Saturation	1.7A
Shielding	Shielded
DC Resistance (DCR)	125mOhm Max
Q @ Freq	-
Frequency - Self Resonant	21MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)	0.094" (2.40mm)
