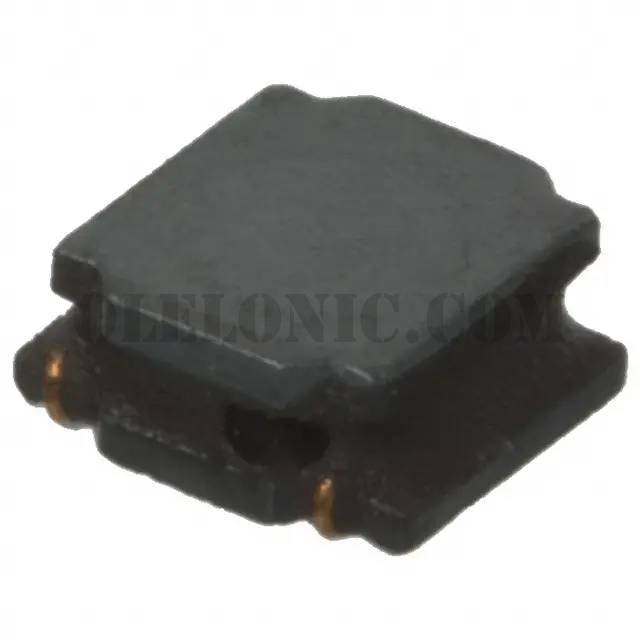

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	3.3µH
Tolerance	±20%
Current Rating (Amps)	1.23A
Current - Saturation	1.21A
Shielding	Shielded
DC Resistance (DCR)	96mOhm Max
Q @ Freq	-
Frequency - Self Resonant	49MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.059" (1.50mm)
