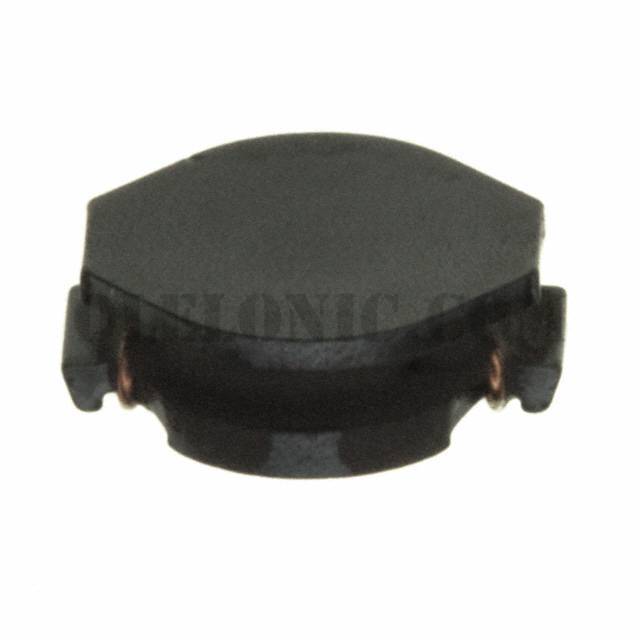

NRS6010T1R5MMGF


NRS6010T1R5MMGF

Part NumberNRS6010T1R5MMGF

Manufacturer

Description

Datasheet

Package / Case2304 (6010 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NRS6010T1R5MMGF - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerTaiyo Yuden
SeriesNR, S Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1.5µH
Tolerance±20%
Current Rating (Amps)1.9A
Current - Saturation2.4A
ShieldingShielded
DC Resistance (DCR)108mOhm Max
Q @ Freq-
Frequency - Self Resonant77MHz
Ratings-
Operating Temperature-25°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / Case2304 (6010 Metric)
Supplier Device Package-
Size / Dimension0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)0.039" (1.00mm)
