Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB05S Thru MB10S
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 400mA
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	MBS-1
Base Part Number	MB10

CBRHD-02 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-HD DIP,	View
MB18S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Schottky 80V Surface Mount MBS-1,	View
CD-DF410S	Bourns Inc., Bridge Rectifier Single Phase Standard 1kV Surface Mount,	View
MB1S	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-SOIC,	View
DBLS159G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
CBRHD-06 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-HD DIP,	View
KMB24STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 40V Surface Mount MBS,	View
SDB105-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View
RH04-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-MiniDIP,	View
SDB105-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View
DBLS207G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBLS,	View
YBS3004G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View

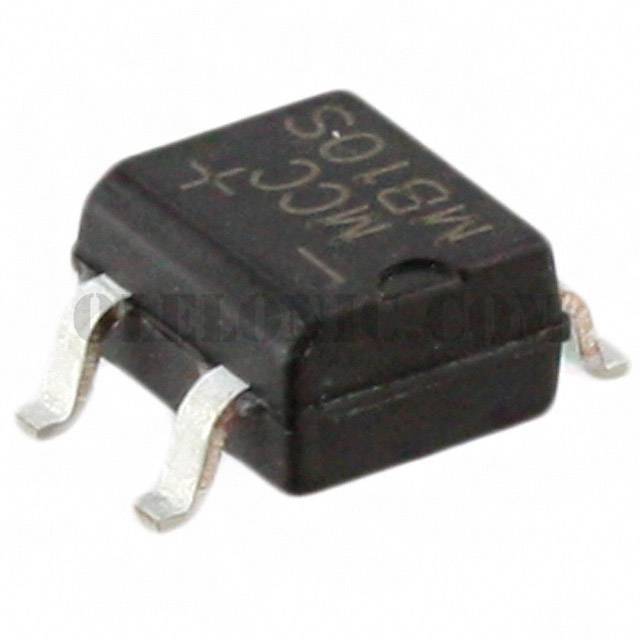

MB10S-TP
