Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SDB201 thru SD207
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 2A
Current - Reverse Leakage @ Vr	10µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	SDB-1

RMB6S RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS,	View
CDBHD1100L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount Mini-Dip (TO-269AA),	View
DBF1510U-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
MB1S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 100V Surface Mount MBS-1,	View
DF10SA-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
DF204ST-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount DFS,	View
RDBF1510U-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
ABS20M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
DFL1510S-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
ABS15M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
MBS8 RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Surface Mount MBS,	View
CDBHM2100L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS-2,	View

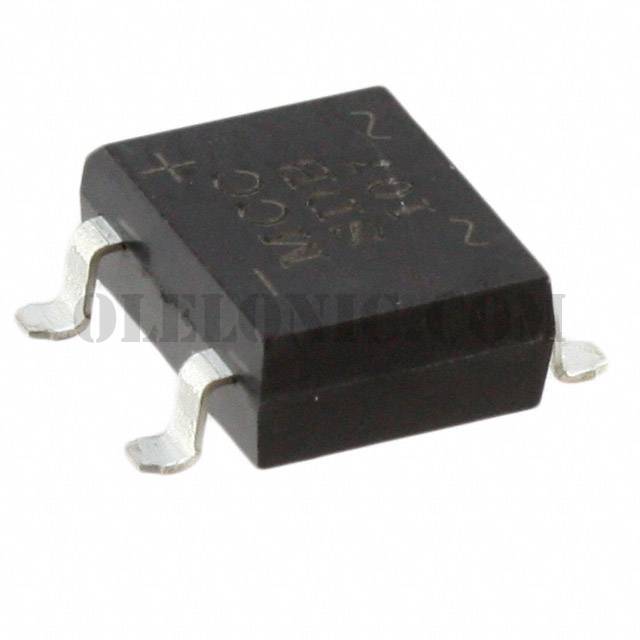

SDB207-TP

Part NumberSDB207-TP
